3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine

Product Categories
Guangdong Threenh Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine

warranty : 1 Year

customized support : OEM, ODM, Software reengineering

Place of Origin : Guangdong, China

Brand Name : 3nh

power : 5W

Accuracy : 0.1

Voltage : 100-240

Type : Testing machine

Application : auto testing, universal testing, plastic testing, textile testing, paper testing, leather testing, wood testing, laboratory testing, lab testing, electrical testing

Protection Class : None

Measurement Range : 60°: 0-1000GU

Division Value : 0.1GU

Accurate : Conform with JJG696 requirements of gloss meter

Storage : 35000

Interface : USB

PC Software : GQC6

Measuring Time : 0.5S

Repeatability : 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU

Display : 2.3 inch white and black screen

Power Supply : 1pc dry-cell battery(can measure 10000 times) or use USB Charge

Contact Now

Product Description
Micropore gloss meter YG60M is a high-precision small-aperture handheld gloss meter developed by 3nh , which is professionally used for gloss measurement of curved surfaces or ultra-small objects. The instrument adopts a 60° universal angle design, with a range of up to 1000GU, simple operation and strong portability. It is widely used in gloss measurement and quality inspection in paints, inks, coatings, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
Product Features of Micropore High Precision Gloss Meter YG60M 1. Micropore design It adopts an extremely small measuring aperture of 2 x4 mm , which is suitable for gloss detection of samples such as curved surfaces, irregular objects , and small objects , and has a wider range of applications.
2. High measurement accuracy The carefully adjusted measurement system and optical path layout ensure stable and accurate gloss measurement , meeting the requirements of JJG 696 working gloss meter, with superior performance, which can fully match the test data of imported gloss meters.
3. Multi-mode measurement Supports switching between basic mode, statistical mode, continuous mode, and quality control mode to adapt to different application scenarios. The normal mode allows for immediate measurement and fast readings; the quality control mode allows for custom upper and lower limits to achieve fast incoming material testing .
4. Calibration function Supports calibration and has the function of automatically checking the calibration standard plate to ensure the accuracy and reliability of long-term measurement.
5. Low power consumption A fully charged AA alkaline battery or NiMH rechargeable battery can measure more than 10,000 times.
6. Simple operation, easy to use The instrument is easy to operate and can be used immediately after being turned on. Data can be locked with one button. No complicated settings are required and the measurement can be completed in 0.5 seconds.
7. Lightweight and portable The instrument is designed based on ergonomics, with a compact and beautiful appearance and a comfortable grip. It is not only suitable for precise measurement in the laboratory, but also convenient for flexible application in the production site.
8. PC quality management software The instrument is equipped with powerful PC data management software, which supports online measurement, printing test reports, data transmission and more functional expansion.
Application
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
Specification
Product number
YG60M 60° Micropore High Precision Gloss Meter
Measuring Angles
60°
Measuring spot(mm)
60°:2X4
Measuring range
60°: 0~1000GU
Graduation value
0.1GU
characteristic
It can be used for gloss measurement and gloss data transmission in paint, ink, coating, paper printing, plastic electronics,
furniture, ceramics, electroplating, hardware, marble and other industries.
Measurement Mode
Basic mode, statistical mode, continuous mode, quality control mode
measure time
0.5 seconds
Repeatability
0~100GU:±0.2GU ;
100~1000GU:±0.2%GU
accuracy
Meet the requirements of JJG 696 working gloss meter
Automatic shutdown time
30~120 seconds optional
Long time calibration
Auto Identify Calibration Board and Calibrate / manual calibration
language
Simplified Chinese, English, Traditional Chinese
Storing data
35,000 (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode)
Display
2.3 inch black and white display
size
160X52X84mm
weight
About 300g (including calibration box and batteries)
power supply
1 AA alkaline battery or NiMH rechargeable battery, can measure more than 10,000 times; or use USB port
interface
USB
PC Software
GQC6 quality management software, quality inspection report printing, more functional expansion
Operating temperature range
0~40°C (32~104°F)
Storage temperature range
-20~50°C (-4~122°F)
humidity
Less than 85% RH, no condensation
Standard accessories
USB data cable, instruction manual, GQC quality management software (download from official website or provided by after-sales),
calibration board
Optional accessories
Micro printer, Bluetooth 5.0 adapter
Note
The technical parameters are for reference only, please refer to the actual products sold
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine
Guangdong Threenh Technology Co., Ltd. is a high-tech enterprise from Guangzhou China. We are also Shenzhen Threenh company with TILO. We research, develop, produce and market photoelectric detection products in color management field and color management field. After years of intensive research, 3nh has launched NH series colorimeter, NR series colorimeter, YS,NS,TS,ST,PS,CR series spectrophotometer, ISO12233 resolution test chart, optical image test solution and specific standard illuminant. Our products are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported all around the world. We can provide customization service which has been well received by customers. 3nh adheres to the business philosophy of "people-oriented, customer first, technological innovation, sustainable development" to meet customers' demands continuously, to create value for customers and to achieve a win-win situation and common development.
FAQ
1. who are we?
We are based in Guangdong, China, start from 1998,sell to Domestic Market(60.00%),South Asia(6.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),South America(4.00%),North America(4.00%),Western Europe(3.00%),Southern Europe(2.00%),Northern Europe(2.00%),Southeast Asia(2.00%),Mid East(2.00%),Oceania(2.00%),Africa(2.00%),Central America(1.00%). There are total 200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Spectrophotometer, Gloss meter, Density meter, Haze meter, Thickness gauge, Light tubes,Standard light source box, Test charts and Light source cabinets.

4. why should you buy from us not from other suppliers?
We have 26 years history R&D experience focus on color industry and we had 3 floors factory in Guangzhou, one factory in Huizhou, another factory in Jiangxi and many offices in China.

5. what services can we provide?
Accepted manufacturing service: OEM,ODM.
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

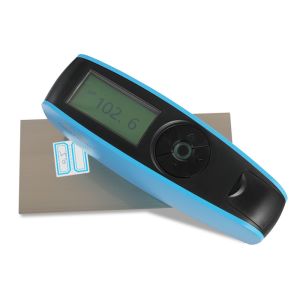

China 3nh Curved Small Contact Surface Gloss Meter YG60M 60 Degree Electroplating Hardware Gloss Test Machine factory
